RAKSHA - CPVC PIPES & FITTINGS
Ideal for HOT & COLD water applications
  kemone   approvals
cpvc pipe fitting

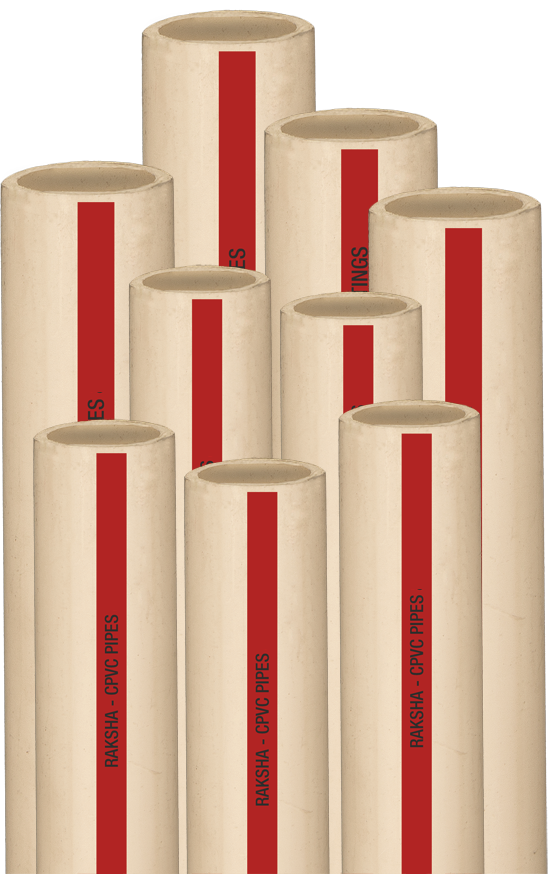

RAKSHA CPVC Pipes & fittings are for potable water applications. Pipes are manufactured in Copper Tube size [CTS] from ½ ” to 2” with two different standard dimensional ratios SDR-11 and SDR-13.5 . Raksha CPVC Pipes & fittings in SDR-11 & SDR-13.5 are made from the equivalent CPVC compound having similar physical properties. Pipes & fittings are produced as per SDR-11 meet the requirement of ASTM D 2846 where as the pipes with SDR-13.5 meet the requirement derived from ASTM F 442, specific to CPVC in Iron Pipe Size (IPS) dimension, which can also be applied to CPVC pipes in C.T.S dimension.

Apart from having the same physical properties, SDR- 11 and SDR-13.5 have different wall thickness and therefore, at any given temperature, have different pressure rating. Raksha CPVC Pipes also comes in Iron pipe size [IPS] from 2 ½” to 4” which meet the requirement of SCH 40 and SCH 80 of ASTM F 441.

Available Size :  15 mm to 100 mm (1/2" to 4")

  SALIENT FEATURES & BENEFITS :

  • Suitable for use upto 93oC
  • Excellent resistance to chemicals.

  • No scaling, retards bacterial growth.
  • Smooth internal surface & Energy saving.

  • Ultimate for Hot & Cold water usage.
  • Fire Resistance and self extinguishing.

  • Life span of more than 50 years.
  • Lite weight and easy installation.

  • High impact strength and durability.
  • Completely leaf proof system.
  STANDARDS & CODES :

Class of Pipe/Fitting
Standard
Sizes Available
Class of Pipe/Fitting
Standard
Sizes Available
  SDR - 11 Pipe IS 15778 ASTM D 2846 1/2" - 2" SDR 11 fittings ASTM D 2846 1/2" - 2"
  SDR - 13.5 Pipe IS 15778 ASTM D 2846 1/2" - 2" Sch. 40 Fittings ASTM F 438 21/2" - 4 "
  SCH - 40 Pipe ASTM F 441 2 1/2" - 4 " Sch. 80 Fittings ASTM F 439 2 1/2" - 2"
  SCH - 80 Pipe ASTM F 441 2 1/2" - 2"

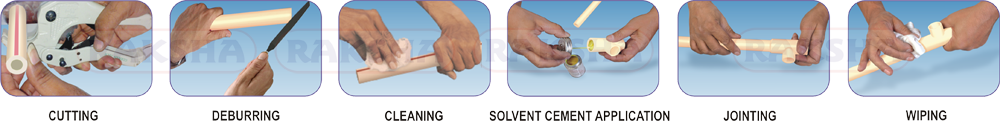

  SOLVENT CEMENT JOINING PROCESS :


joining
